Product Introduction

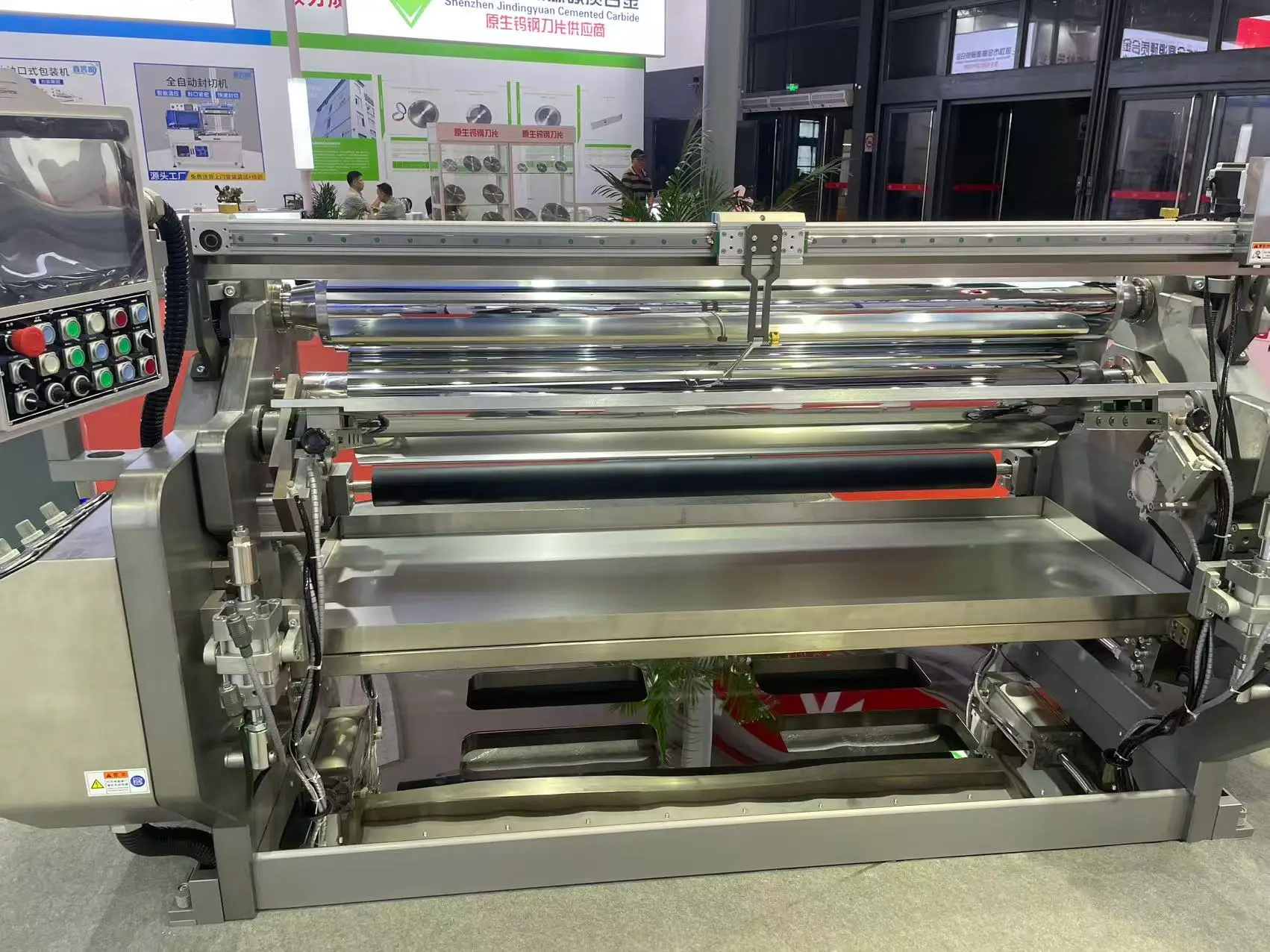

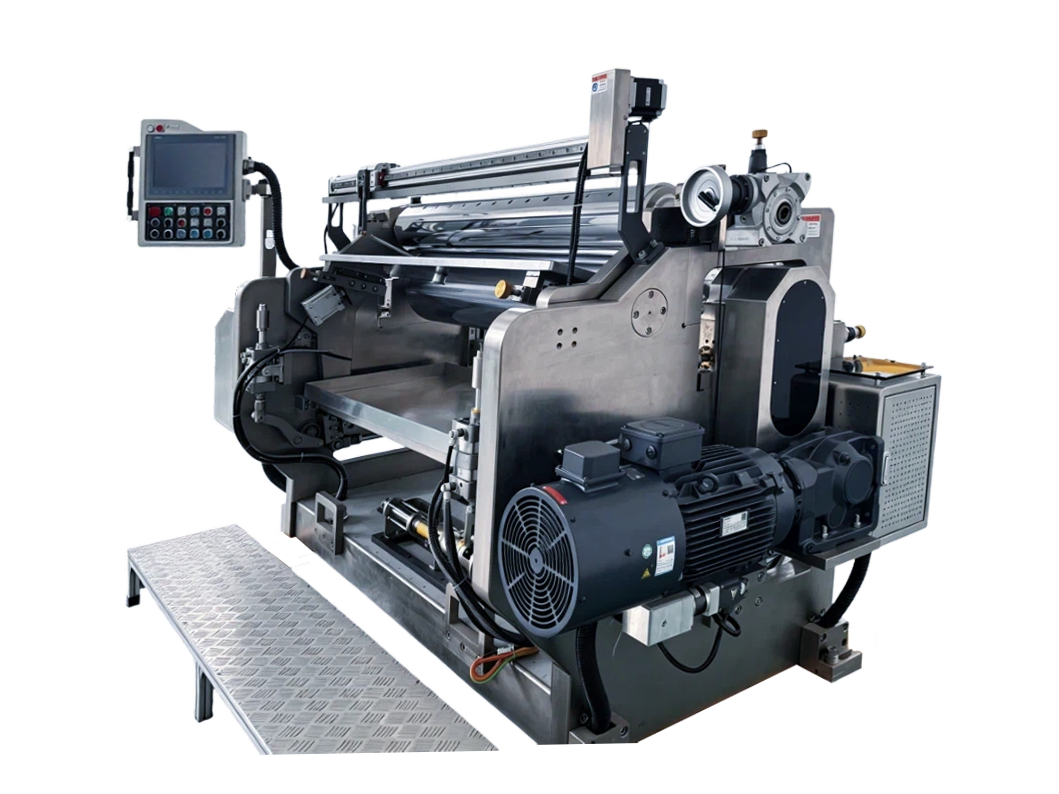

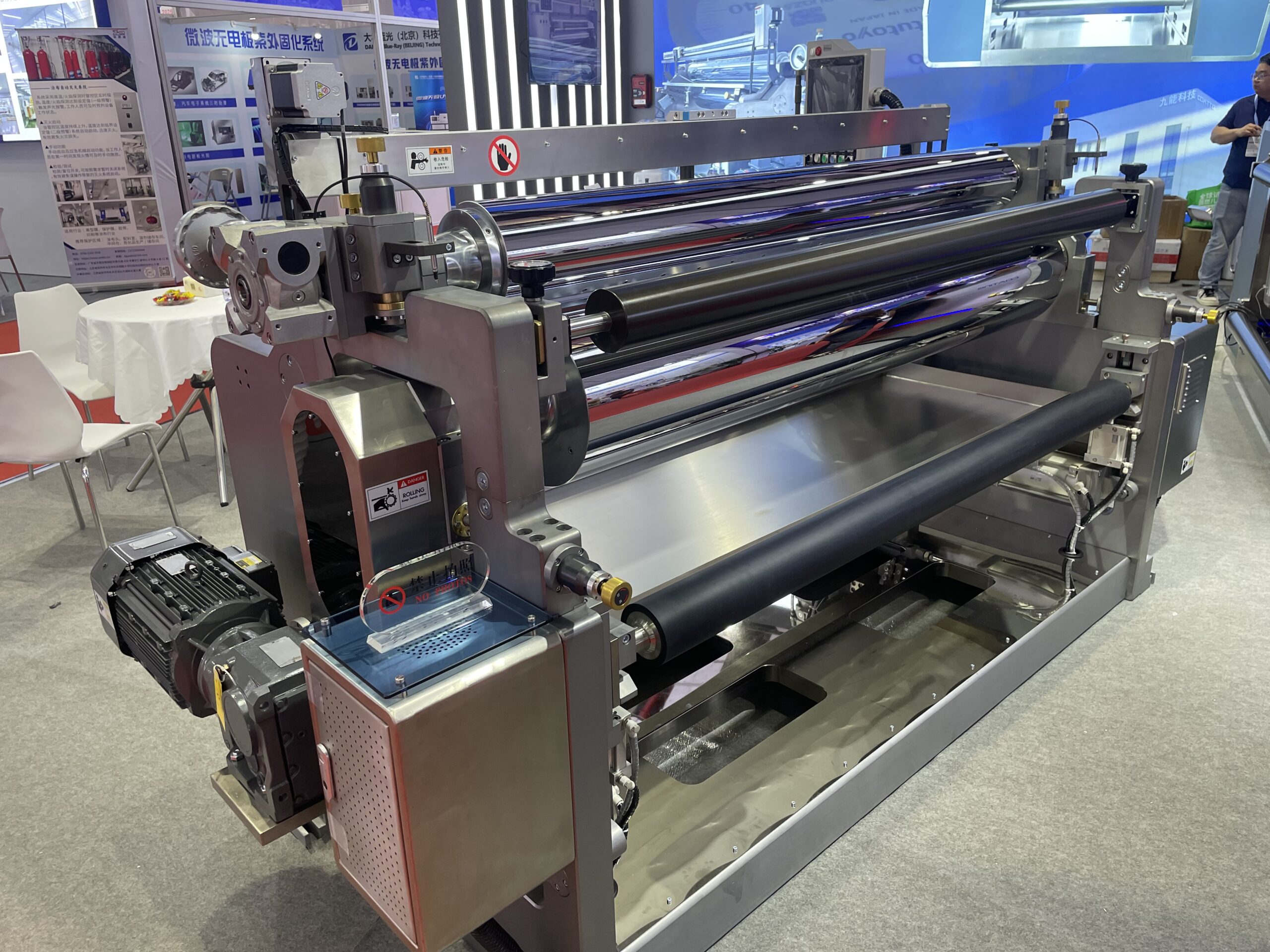

This is a self-developed optical-grade high-precision comma blade coating unit. Built on 15 years of expertise in precision coating roller manufacturing, all core blade rollers and coating rollers are independently designed and produced in-house. Supported by strict precision machining and heat treatment processes, it is designed for high-end optical film precision coating applications and serves as a core coating system for optoelectronic materials and advanced functional film production.

Core Hardware Advantages

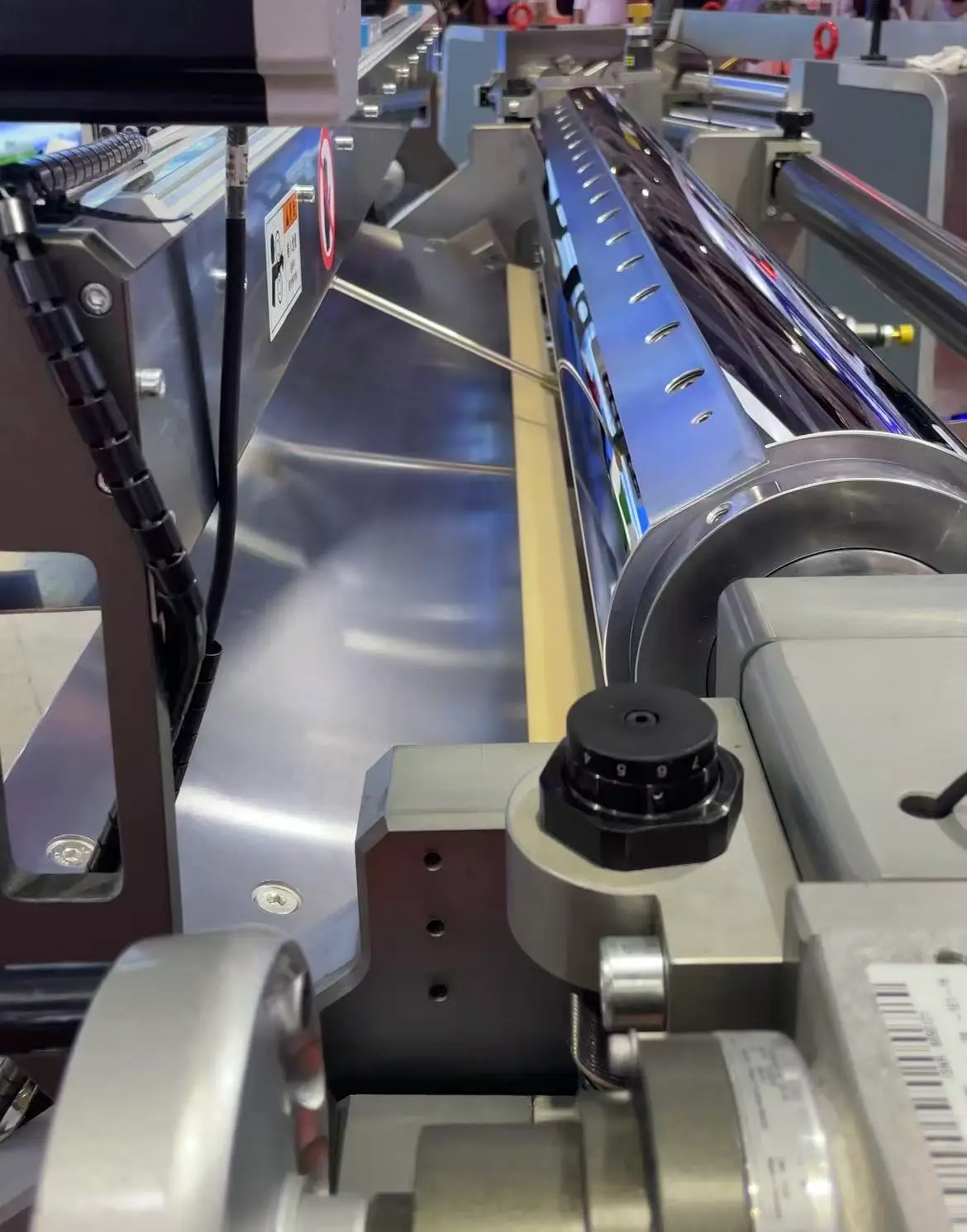

1. 1.75m Ultra-Mirror Hardened Coating Roller
The system is equipped with a 1.75-meter wide ultra-mirror roller. It is custom-machined using specially hardened materials. The roller surface achieves an extremely high-grade mirror finish. The roller features outstanding overall hardness and excellent resistance to bending and deformation.

Even under long-term high-speed continuous operation, there is no deflection or surface indentation. Under wide-width coating conditions, it maintains stable straightness, effectively eliminating edge thickness variation and striping defects.

2. Integrated Rigid Frame Structure
The machine adopts a one-piece cast reinforced frame structure with excellent vibration resistance and anti-stress deformation performance.

Under high-speed web handling and high-pressure adhesive supply conditions, the system operates smoothly. The closed-loop adjustment of the doctor blade gap is highly stable, preventing coating thickness fluctuations caused by structural vibration and ensuring consistent coating uniformity throughout the process.

3. Micron-Level Coating Precision Control
Enables ultra-thin and highly uniform coating. Thickness control accuracy reaches the micron level, fully meeting strict optical film requirements for high flatness, defect-free surfaces, and uniform thickness.

This significantly improves optical performance, flatness, and layer consistency of finished products.

Compatible Substrates

Optical substrates: PET optical base film, PC film, PI (polyimide) film, TAC film, COP (cyclic olefin polymer) film, polarizer base film, light guide film substrate, brightness enhancement film substrate, diffusion film substrate.

Flexible substrates: BOPP film, CPP film, PVC film, nonwoven fabric, release film, protective film, conductive flexible film materials.

Compatible Coating Systems
UV-curable adhesives, optical pressure-sensitive adhesives, acrylic adhesives, anti-static coatings, hard coatings (HC layer), anti-fingerprint coatings, release agents, thermal conductive adhesives, optical matte coatings, anti-reflective coatings, insulation coatings, water-based eco-friendly coatings, solvent-based functional coatings, etc.

Application Fields
Polarizers, backlight module optical films, AR anti-reflection films, AG anti-glare films, hard-coated optical films, conductive optical films, flexible display substrates, high-end electronic protective films, new energy functional films, and high-precision optical & electronic coating processes.
